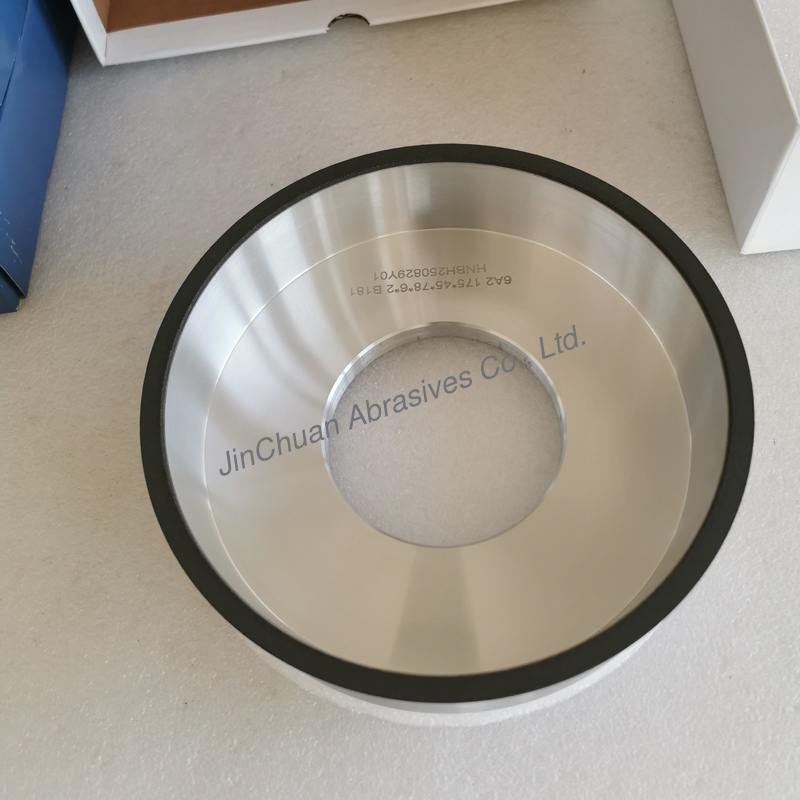

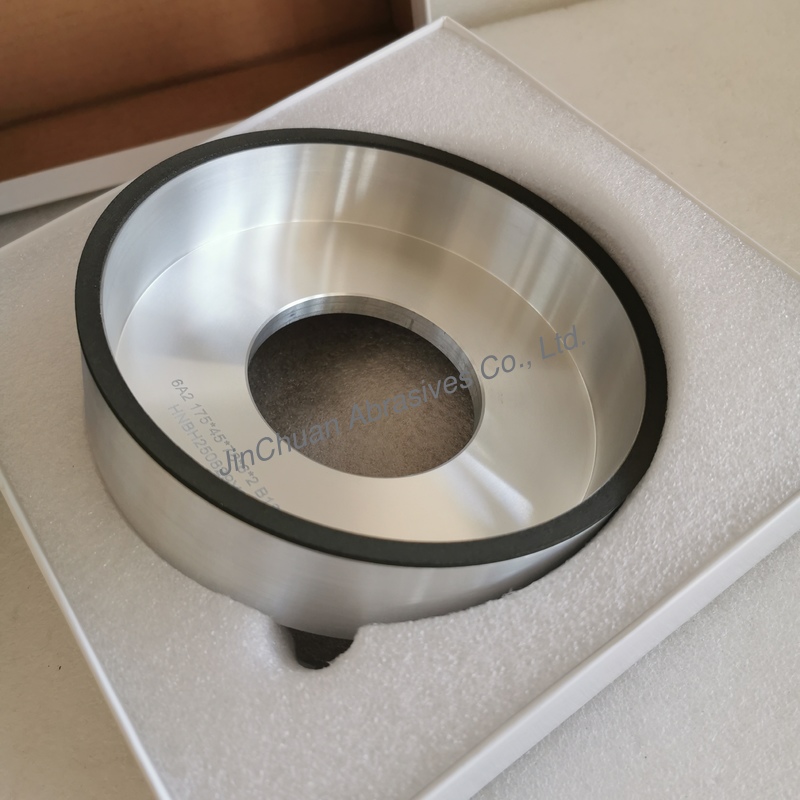

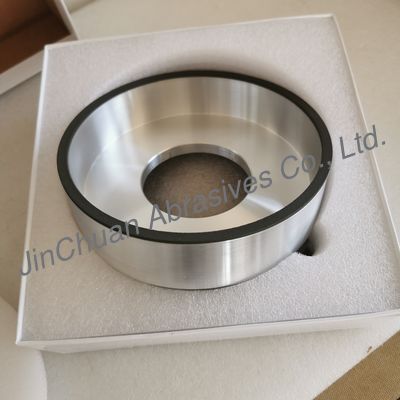

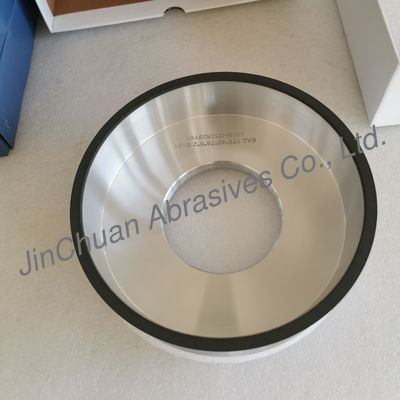

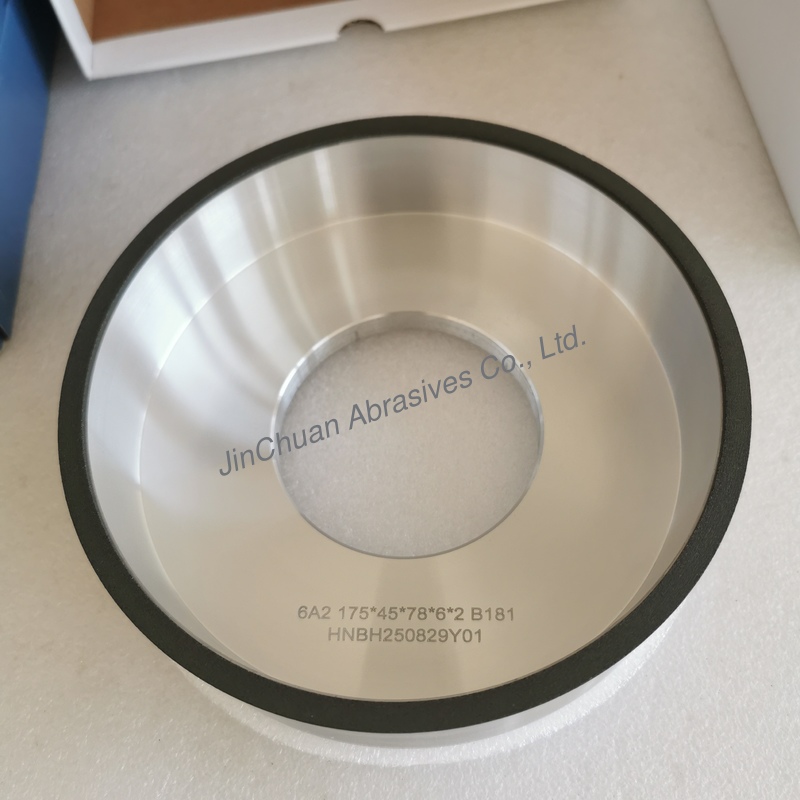

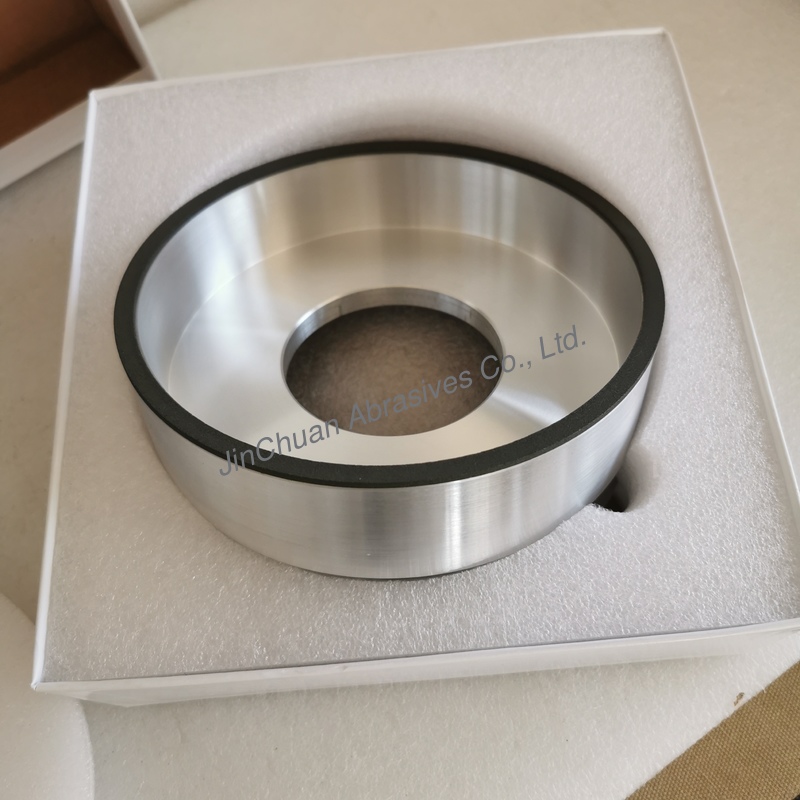

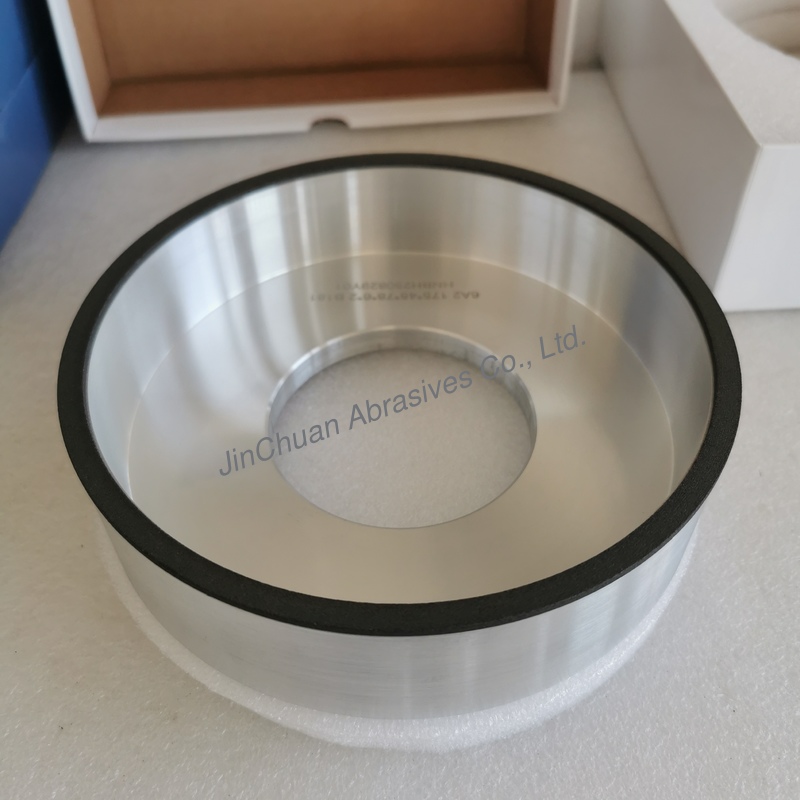

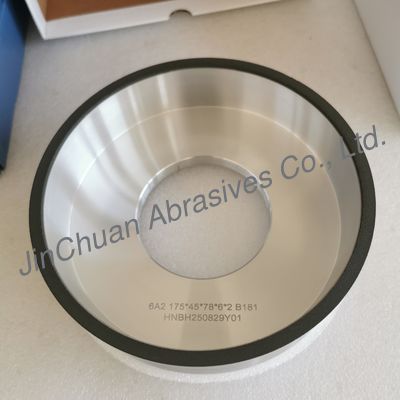

6A2 175*45T*78*6*2mm B181 Resin Bond CBN Grinding Wheel For Grinding And Polishing High-Speed Steel

Product Description:

Resin-bonded CBN grinding wheels are a type of abrasive tool used for grinding difficult-to-machine materials. They offer high efficiency, long life, high precision, and excellent surface finish. They are primarily used for face grinding, tool grinding, precision bearings, automotive parts, and machining various materials such as carbide, hardened steel, and ceramics. The resin bond imparts elasticity to the grinding wheel, making it less susceptible to workpiece burns and possessing excellent self-sharpening properties, making it an excellent choice for applications such as fine grinding and polishing.

Resin-bonded CBN grinding wheels offer exceptionally high surface finish quality. Thanks to their excellent self-sharpening properties and the inherent elasticity of the resin bond, they effectively absorb grinding vibrations, resulting in extremely low surface roughness (Ra),  preventing surface damage such as burns and micro-cracks on the workpiece, and ensuring perfect machining integrity.  Resin-bonded CBN grinding wheels also offer the advantages of low grinding forces and temperatures. Their sharp cutting characteristics reduce grinding resistance and energy consumption. Combined with coolant, they effectively control the temperature of the grinding zone, making them particularly suitable for machining heat-sensitive materials.

Resin-bonded CBN grinding wheels offer a wide range of adaptability: by adjusting the CBN concentration, grit size, resin formulation, and additives, they can be customized to meet a wide range of processing requirements, from rough grinding to mirror polishing.Resin-bonded CBN grinding wheels also offer excellent economic benefits: while the cost per wheel may be lower than that of metal-bonded grinding wheels, their true advantage lies in the reduced overall cost per part, resulting from their high material removal rate and excellent surface quality.

Features:

• High Efficiency and Long Life: Grinding efficiency is several times higher than that of ordinary grinding wheels, resulting in a long lifespan, making it suitable for high-volume production.
• High Precision: Achieve machining accuracies up to 0.5 μm, making it suitable for demanding precision machining applications.
• Excellent Elasticity: The elasticity of the resin bond reduces damage to the workpiece, reduces burn rates, and improves surface finish.
• Excellent Self-Sharpening: Excellent self-sharpening properties during grinding prevent clogging.

Technical Parameters:

Applications:

Resin-bonded CBN grinding wheels are primarily used for machining ferrous metals and high-hardness materials, particularly excelling in precision grinding and polishing. They are widely used in automotive parts (such as compressor cylinders and piston rings), bearings, molds, high-speed steel, cemented carbide, and powder metallurgy.

Main Applications and Applications

End Grinding: Widely used for rough and fine grinding of end surfaces of parts such as compressor cylinders, piston rings, and hydraulic pump stators.

Tool Grinding: Suitable for the production and fine grinding of various tools such as broaches, hobs, and cutting tools.

Precision Machining: Suitable for grinding high-precision workpieces such as precision bearings and automotive parts.

Hard Material Machining: Suitable for machining difficult-to-machine materials such as cemented carbide, hardened steel, powder metallurgy, ceramics, and glass.

Polishing: Suitable for fine grinding and polishing, as well as for removing cutting marks.
